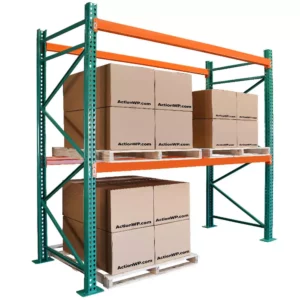

Complete Units with Heavy Duty Uprights – 12′ High

Product Image

Complete Units with Heavy Duty Uprights – 12′ High

$434.94 – $664.28

  • Complete Starter Units 12′ (144″) high, with two heavy duty uprights and four load beams to create two levels. Available 96″-144″ wide.
  • Heavy Duty Uprights are 13 gauge and have an overall capacity of 28,300 lbs.
  • Columns are 3″ x 3″ with a 5″ x 8″ footplate (4-holes).
  • Add-On Units consist of one bolted upright and four load beams.

Additional Components – sold separately:

SKU: N/A Category:

Get Fast FREE Shipping!*

Widths Available:

96" 108" 120" 144"

96" 108" 120" 144"

Full Description

Quantity discounts will automatically be applied.

  • 5-10 Units will deduct 4%
  • 11+ Units will deduct 8%

96" Wide Complete Units

Pallet Rack Heavy Duty with Boxes

# I312-42964

96 X 42 X 144”

$503.06
$482.94
$462.82

4” beam height

5000 beam cap lbs pair

ADD-ON UNIT

I312-42964A

$334.63
$321.24
$307.86
Pallet Rack Heavy Duty with Boxes

# I312-48964

96 X 48 X 144”

$511.76
$491.29
$470.82

4” beam height

5000 beam cap lbs pair

ADD-ON UNIT

I312-48964A

$338.98
$325.42
$311.86
Pallet Rack Heavy Duty with Boxes

# I312-42965

96 X 42 X 144”

$526.78
$505.71
$484.64

5” beam height

7000 beam cap lbs pair

ADD-ON UNIT

I312-42965A

$358.35
$344.02
$329.68
Pallet Rack Heavy Duty with Boxes

# I312-48965

96 X 48 X 144”

$535.48
$514.06
$492.64

5” beam height

7000 beam cap lbs pair

ADD-ON UNIT

I312-48965A

$362.70
$348.19
$333.68
Dimensions W X D X H” Beam Height Beam Cap. (lbs/pair) Model No. Net Each
1-4 5-10 11+
Add To Cart Add-On Unit
96 X 42 X 144” 4” 5000 I312-42964
$503.06
$482.94
$462.82
I312-42964A
$334.63
$321.24
$307.86
96 X 48 X 144” 4” 5000 I312-48964
$511.76
$491.29
$470.82
I312-48964A
$338.98
$325.42
$311.86
96 X 42 X 144” 5” 7000 I312-42965
$526.78
$505.71
$484.64
I312-42965A
$358.35
$344.02
$329.68
96 X 48 X 144” 5” 7000 I312-48965
$535.48
$514.06
$492.64
I312-48965A
$362.70
$348.19
$333.68

108" Wide Complete Units

Pallet Rack Heavy Duty with Boxes

# I312-421084

108 X 42 X 144”

$434.94
$417.54
$400.14

4” beam height

4000 beam cap lbs pair

ADD-ON UNIT

I312-421084A

$285.17
$273.76
$262.36
Pallet Rack Heavy Duty with Boxes

# I312-481084

108 X 48 X 144”

$442.98
$425.26
$407.54

4” beam height

4000 beam cap lbs pair

ADD-ON UNIT

I312-481084A

$289.19
$277.62
$266.05
Pallet Rack Heavy Duty with Boxes

# I312-421085

108 X 42 X 144”

$454.34
$436.17
$417.99

5” beam height

6200 beam cap lbs pair

ADD-ON UNIT

I312-421085A

$304.57
$292.39
$280.20
Pallet Rack Heavy Duty with Boxes

# I312-481085

108 X 48 X 144”

$462.38
$443.88
$425.39

5” beam height

6200 beam cap lbs pair

ADD-ON UNIT

I312-481085A

$308.60
$296.26
$283.91
Dimensions W X D X H” Beam Height Beam Cap. (lbs/pair) Model No. Net Each
1-4 5-10 11+
Add To Cart Add-On Unit
108 X 42 X 144” 4” 4000 I312-421084
$434.94
$417.54
$400.14
I312-421084A
$285.17
$273.76
$262.36
108 X 48 X 144” 4” 4000 I312-481084
$442.98
$425.26
$407.54
I312-481084A
$289.19
$277.62
$266.05
108 X 42 X 144” 5” 6200 I312-421085
$454.34
$436.17
$417.99
I312-421085A
$304.57
$292.39
$280.20
108 X 48 X 144” 5” 6200 I312-481085
$462.38
$443.88
$425.39
I312-481085A
$308.60
$296.26
$283.91

120" Wide Complete Units

Pallet Rack Heavy Duty with Boxes

# I312-421204

120 X 42 X 144”

$448.98
$431.02
$413.06

4” beam height

3300 beam cap lbs pair

ADD-ON UNIT

I312-421204A

$299.21
$287.24
$275.27
Pallet Rack Heavy Duty with Boxes

# I312-481204

120 X 48 X 144”

$457.02
$438.74
$420.46

4” beam height

3300 beam cap lbs pair

ADD-ON UNIT

I312-481204A

$303.23
$291.10
$278.97
Pallet Rack Heavy Duty with Boxes

# I312-421205

120 X 42 X 144”

$470.85
$452.02
$433.18

5” beam height

5300 beam cap lbs pair

ADD-ON UNIT

I312-421205A

$321.09
$308.25
$295.40
Pallet Rack Heavy Duty with Boxes

# I312-481205

120 X 48 X 144”

$478.89
$459.73
$440.58

5” beam height

5300 beam cap lbs pair

ADD-ON UNIT

I312-481205A

$325.11
$312.11
$299.10
Dimensions W X D X H” Beam Height Beam Cap. (lbs/pair) Model No. Net Each
1-4 5-10 11+
Add To Cart Add-On Unit
120 X 42 X 144” 4” 3300 I312-421204
$448.98
$431.02
$413.06
I312-421204A
$299.21
$287.24
$275.27
120 X 48 X 144” 4” 3300 I312-481204
$457.02
$438.74
$420.46
I312-481204A
$303.23
$291.10
$278.97
120 X 42 X 144” 5” 5300 I312-421205
$470.85
$452.02
$433.18
I312-421205A
$321.09
$308.25
$295.40
120 X 48 X 144” 5” 5300 I312-481205
$478.89
$459.73
$440.58
I312-481205A
$325.11
$312.11
$299.10

144" Wide Complete Units

Pallet Rack Heavy Duty with Boxes

# I312-421445

144 X 42 X 144”

$503.28
$483.15
$463.02

5” beam height

3600 beam cap lbs pair

ADD-ON UNIT

I312-421445A

$353.51
$339.37
$325.23
Pallet Rack Heavy Duty with Boxes

# I312-481445

144 X 48 X 144”

$511.32
$490.87
$470.41

5” beam height

3600 beam cap lbs pair

ADD-ON UNIT

I312-481445A

$357.53
$343.23
$328.93
Pallet Rack Heavy Duty with Boxes

# I312-421446

144 X 42 X 144”

$655.58
$629.36
$603.13

6” beam height

6000 beam cap lbs pair

ADD-ON UNIT

I312-421446A

$487.15
$467.66
$448.18
Pallet Rack Heavy Duty with Boxes

# I312-481446

144 X 48 X 144”

$664.28
$637.71
$611.14

6” beam height

6000 beam cap lbs pair

ADD-ON UNIT

I312-481446A

$491.50
$471.84
$452.18
Dimensions W X D X H” Beam Height Beam Cap. (lbs/pair) Model No. Net Each
1-4 5-10 11+
Add To Cart Add-On Unit
144 X 42 X 144” 5” 3600 I312-421445
$503.28
$483.15
$463.02
I312-421445A
$353.51
$339.37
$325.23
144 X 48 X 144” 5” 3600 I312-481445
$511.32
$490.87
$470.41
I312-481445A
$357.53
$343.23
$328.93
144 X 42 X 144” 6” 6000 I312-421446
$655.58
$629.36
$603.13
I312-421446A
$487.15
$467.66
$448.18
144 X 48 X 144” 6” 6000 I312-481446
$664.28
$637.71
$611.14
I312-481446A
$491.50
$471.84
$452.18

Widths Available:

96" 108" 120" 144"

96" 108" 120" 144"

The Action Wholesale Complete Boltless Pallet Rack unit comes 12 feet tall, with two heavy duty uprights and four load beams to create two levels. Heavy Duty Uprights are 13 gauge and have an overall capacity of 28,300 lbs. Made for warehouse/ industrial racking storage for ultra heavy products. Columns are 3″ x 3″ with a 5″ x 8″ footplate (4-holes). Can choose between 96W, 108W, 120W, 144W. All pallet rack capacities are based on non-seismic installation. Upright capacities are based on maximum 36″ beam spacing. Add-On Units consist of one bolted upright and four load beams.
